Catalog Number - 47240-30-C

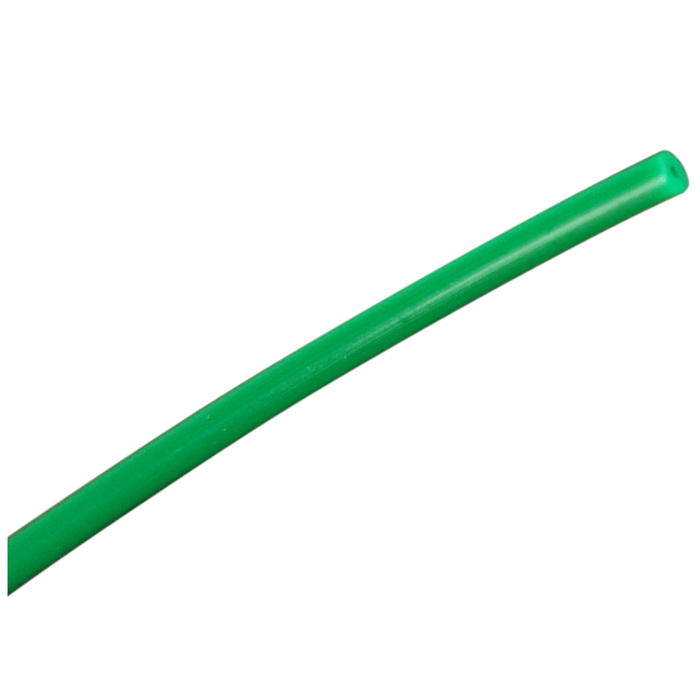

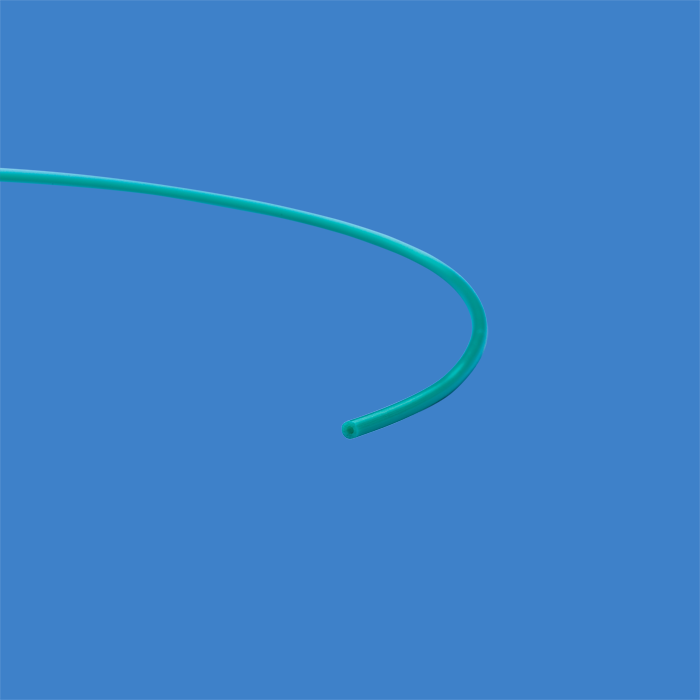

47240-30-C ARE‑Applied Research PTFE Tubing is a high‑purity, low‑pressure fluid transfer solution engineered for HPLC, UHPLC, LC‑MS, and general laboratory applications, delivering a large internal diameter for maximum flow capacity combined with a long, continuous spool for efficient system routing.

Manufactured from 100% virgin PTFE resin, this tubing contains no additives or plasticizers, except for trace pigment used solely for visual identification, ensuring low extractables and compatibility with sensitive analytical workflows.

Supplied on a convenient 25 meter spool, ideal for bulk use, OEM integration, and custom installations.

Precision Dimensions – Maximum Flow Optimization

• Inner Diameter (ID): 0.030" (0.75 mm)

• Outer Diameter (OD): 1/16" (1.6 mm)

• Wall Thickness: 0.425 mm

• Tolerance (ID & OD): ± 0.10 mm

✅ Largest ID in this series supports maximum flow rates with minimal resistance

Green Pigmentation – Visual Line Identification

• Green‑pigmented PTFE tubing

• Assists with:

  • Visual differentiation of fluid lines

  • Organized multi‑line routing

  • Easier maintenance and troubleshooting

✅ Intended for visual identification only (not functional color coding)

Low‑Pressure Chromatography Performance

• Designed for low‑pressure applications, including:

  • Pre‑pump mobile phase delivery

  • Post‑detector solvent waste lines

  • Bulk solvent transfer

• Pressure Rating: 510 psi (35.1 bar)

✅ Ideal for high‑volume solvent handling over long distances

Virgin PTFE Construction – High Purity & Inertness

• Manufactured from 100% virgin PTFE

• No additives (except trace pigment)

• Chemically inert and non‑reactive

✅ Minimizes contamination risk in LC‑MS and trace‑level analyses

Broad Chemical & Thermal Resistance

• Compatible with:

  • Organic solvents

  • Acids and bases

  • Aqueous mobile phases

• Maximum Temperature: 260 °C

✅ Suitable for demanding chemical and elevated‑temperature environments

Micro‑Porous Structure – Application Consideration

• PTFE tubing contains micropores allowing slight gas exchange

• Important when working with:

  • Degassed solvents

  • Oxygen‑sensitive workflows

✅ Consider alternative materials when gas impermeability is required

Flexible & Durable Design

• Flexible for long‑distance routing and installation

• Durable for repeated laboratory use

• Maintains clear visual identification in complex systems

✅ Supports efficient setup and maintenance

Convenient Spool Format – High Volume Efficiency

• Supplied on a 25 meter spool

• Ideal for:

  • Bulk laboratory use

  • Custom cut lengths

  • OEM manufacturing

✅ Improves handling and reduces installation complexity

Regulatory Compliance

• Compliant with:

  • RoHS EU Directive 2011/65/EU

  • Amendment (EU) 2015/863

✅ Meets global environmental and safety standards

Available Length Options

• 25 meter spool (this item)

• 1 meter roll

• 3 meter roll

• 5 meter roll

• 10 meter roll

✅ Custom cut lengths available through Customer Service

Typical Applications

• High‑flow HPLC mobile phase delivery (pre‑pump)

• Bulk solvent transfer systems

• Extended waste line routing

• Multi‑line systems requiring visual differentiation

• OEM and instrument integration

Important Usage Notes

• Not intended for high‑pressure HPLC pump connections

• Green pigmentation is for visual identification only

• Consider permeability for degassed or oxygen‑sensitive solvents

• Use proper fittings to ensure secure, leak‑free connections
